A Simple Weld Analysis

This is a trial for a little weld problem. The idea is to have a certain weld, and vary the proportion of loading due to the beam axis constraint and the load traction across the weld.

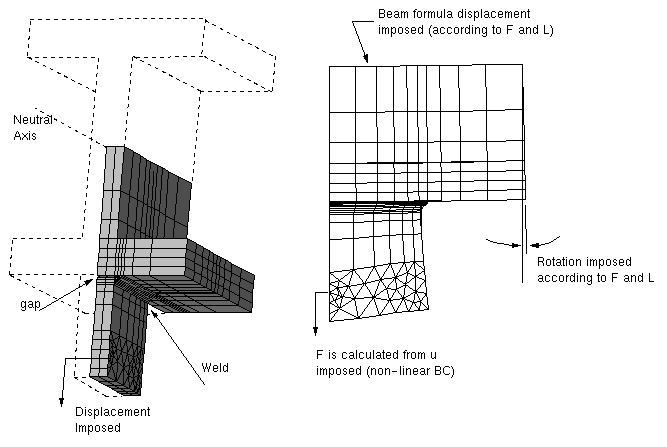

This is a diagram of the non-linear boundary conditions imposed.

An example input file excerpt for the new boundary condition follows:


  **beam_deflection
   *L   400.0
   *EI  200000.0 2.54e4
   *center_displacement load    -0.2 time
   *neutral_axis        neutral
   *end_face            y=20    (0. 20. 14.)
